5G Equipment PCB

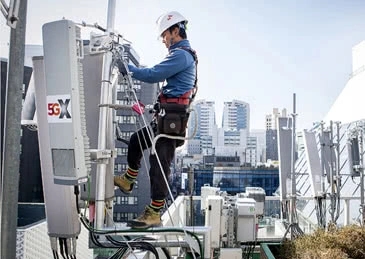

5th Generation Mobile Communication Technology (5G) is a new Generation of broadband Mobile Communication Technology with the characteristics of high speed, low delay and large connection. It is the network infrastructure to realize man-machine interconnection.
| Item | HDI Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| Structure | 5+n+5 | 6+n+6 | 7+n+7 | |
| HDI Stack Via | AnyLayer(12L) | AnyLayer(14L) | AnyLayer(16L) | |
| Board Thickness(mm) | Min. 8L | 0.45 | 0.4 | 0.35 |
| Min. 10L | 0.55 | 0.45 | 0.4 | |
| Min. 12L | 0.65 | 0.6 | 0.55 | |
| MAX. | 2.4 | |||
| Min. Core Thickness ( um ) | 50 | 40 | 40 | |
| Min. PP Thickness ( um ) | 30(#1027PP) | 25(#1017PP) | 20(#1010PP) | |
| Base Copper Thickness | Inner Layer ( OZ) | 1/3 ~ 2 | 1/3 ~ 2 | 1/3 ~ 2 |
| Outer Layer ( OZ ) | 1/3 ~ 1 | 1/3 ~ 1 | 1/3 ~ 1 | |
| Item | HDI Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| Min. Mechanical Drill hole size(um) ** | 200 | 200 | 150 | |
| Max. Through Hole Aspect Ratio * | 8:1 | 10:1 | 10:1 | |
| Min. Laser via/Pad Size ( um ) | 75/200 | 70/170 | 60/150 | |
| Max. Laser Via Aspect Ratio | 0.8:1 | 0.8:1 | 0.8:1 | |
| Laser Via on PTH(VOP)design | Yes | Yes | Yes | |
| Laser X type through hole(DT≤200um) | NA | 60~100um | 60~100um | |
| Min. LW/S (L/S/Cu, um) | Inner Layer | 45 /45 /15 | 40/ 40/ 15 | 30/ 30 /15 |
| outer Layer | 50 /50/ 20 | 40 /50 /20 | 40 /40 /17 | |
| Min BGA Pitch (mm) | 0.35 | 0.3 | 0.3 | |
| Item | HDI Advanced Technology | |||
| 2019 | 2020 | 2021 | ||
| Solder mask Registration (um) | +/- 30 | +/- 25 | +/- 20 | |
| Min. Solder Mask Dam (mm) | 0.07 | 0.06 | 0.05 | |
| PCB Warpage Control | >= 50ohm | +/-10% | +/-8% | +/- 5% |
| < 50ohm | +/- 5ohm | +/- 3ohm | +/- 3ohm | |
| PCB Warpage Control | ≤0.5% | ≤0.5% | ≤0.5% | |
| cavity Depth accuracy (um) | Mechanical | +/- 75 | +/- 75 | +/- 50 |
| Laser directly | +/- 50 | +/- 50 | +/- 50 | |
| Surface Finishing | OSP,ENIG,Immersion Tin,Hard Au, Immersion Ag | OSP,ENIG,Immersion Tin,Hard Au,Immersion Ag, ENEPIG | ||
| Packaging & Delivery | |||||
| Packaging Details: | Inner: vacuum packing or Anti-static package, Outer: export carton or according to the customer's requirement. | ||||
| Port: | Shenzhen or Hongkong | ||||
| Lead Time: | Quantity(Pieces) | 1-10 | 11-100 | 101-1000 | >1000 |
| Est. Time(days) | 20 | 21 | 25 | To be negotiated | |
